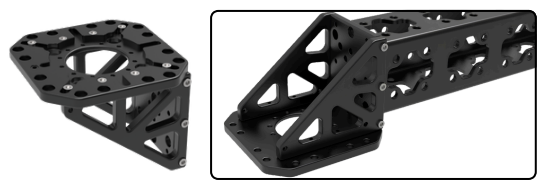

90 Degrees Female Mitchell to Cine Truss

A female Mitchell receiver turned 90 degrees off the truss axis. Use it when the head or arm has to come off the side of the structure instead of the end - the usual answer for low mounts and tight side-of-vehicle builds.

Cine Truss is a precision-machined mini truss system built for camera departments. Every section is 4" x 4" 6061-T6 aluminum, black anodized, and bolts together with M10 hardware instead of the heavy steel connector blocks a normal truss needs. Tight tolerances mean the joints come together with no play, the same way every time, so a rig you built yesterday goes back together today exactly as it was.

Because it breaks down to straight sections it packs into standard protective cases, which is what makes it workable for travel and run-and-gun jobs where a conventional truss simply is not going to fly.

Specifications

• System: Cine Truss M|4x4| (4" x 4" profile)
• Standard Materials: 6061-T6 Aluminum
• Standard Finish: Black Anodized
• Recommended Hardware: M10 x 1.5 Thread, Class 10.9 Bolt and Nut
• Part Number: CTR-006

Compatible with every Cine Truss section and adapter in the range.
