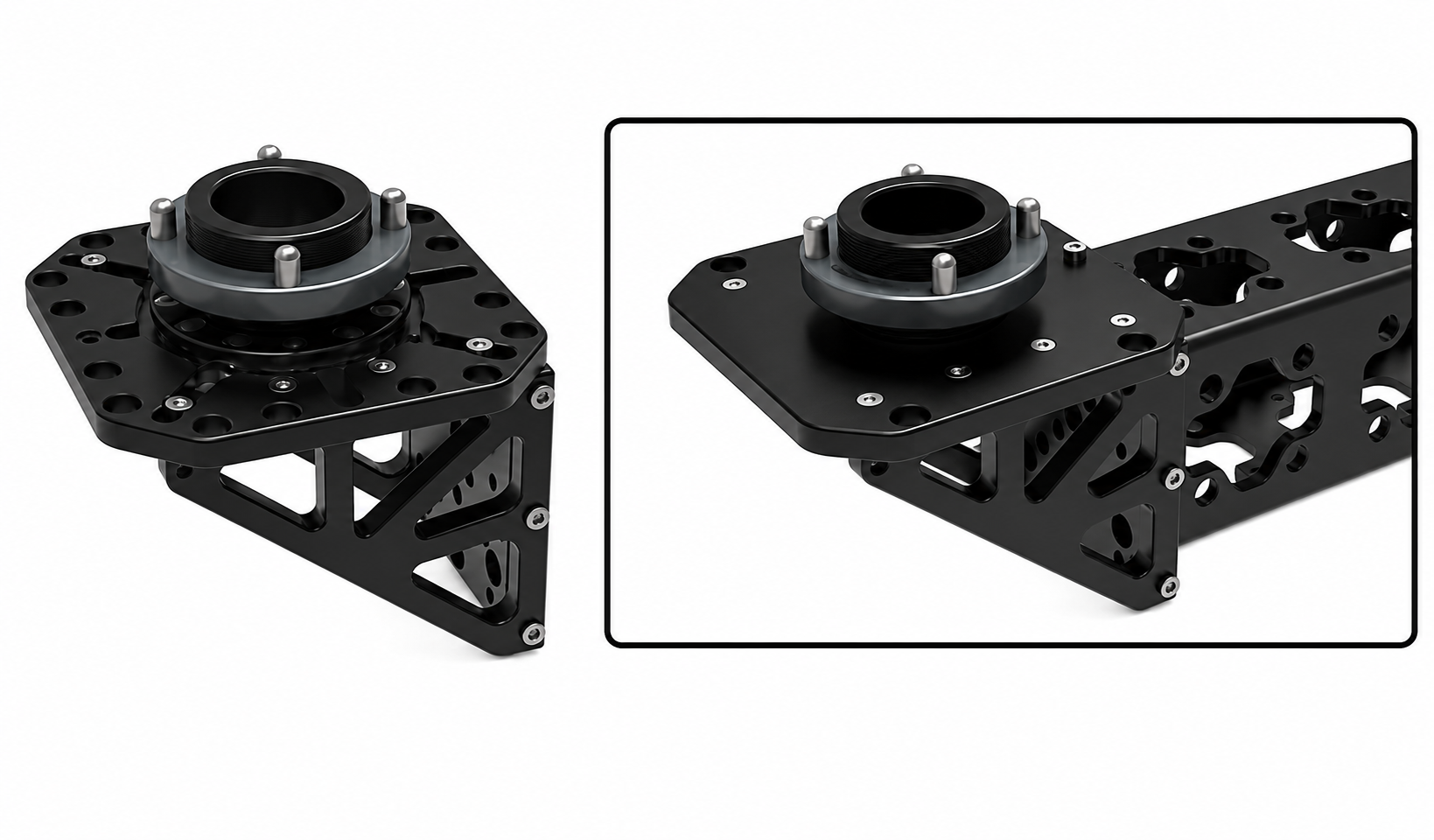

90 Degrees Male Mitchell to Cine Truss

A male Mitchell pin at 90 degrees to the truss. The side-mount counterpart to the straight male Mitchell, for hanging the truss off something at a right angle.

Cine Truss is a precision-machined mini truss system built for camera departments. Every section is 4" x 4" 6061-T6 aluminum, black anodized, and bolts together with M10 hardware instead of the heavy steel connector blocks a normal truss needs. Tight tolerances mean the joints come together with no play, the same way every time, so a rig you built yesterday goes back together today exactly as it was.

Because it breaks down to straight sections it packs into standard protective cases, which is what makes it workable for travel and run-and-gun jobs where a conventional truss simply is not going to fly.

Specifications

• System: Cine Truss M|4x4| (4" x 4" profile)
• Standard Materials: 6061-T6 Aluminum
• Standard Finish: Black Anodized
• Recommended Hardware: M10 x 1.5 Thread, Class 10.9 Bolt and Nut
• Part Number: CTR-007

Compatible with every Cine Truss section and adapter in the range.
