CUCULLO HOOD MOUNT SYSTEM

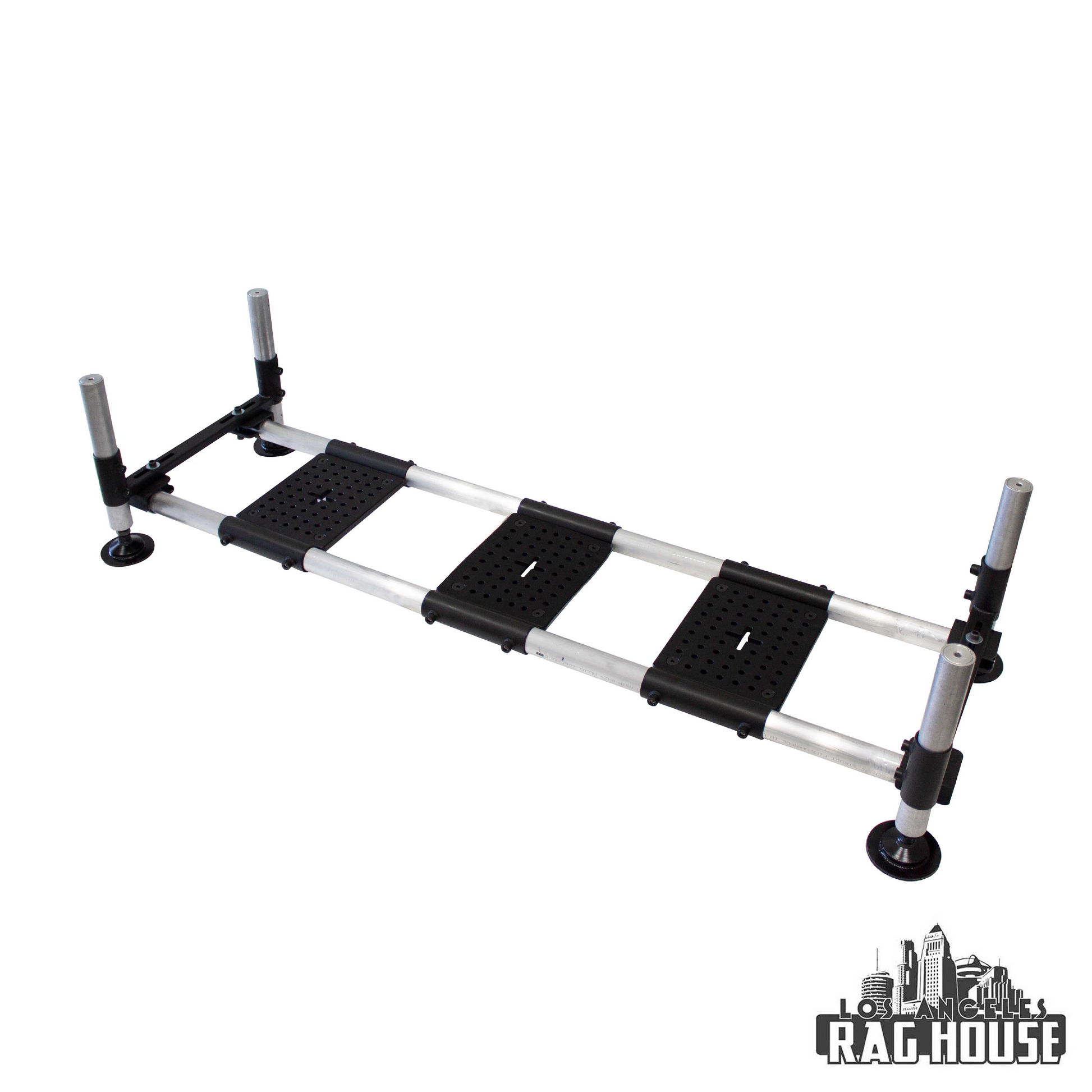

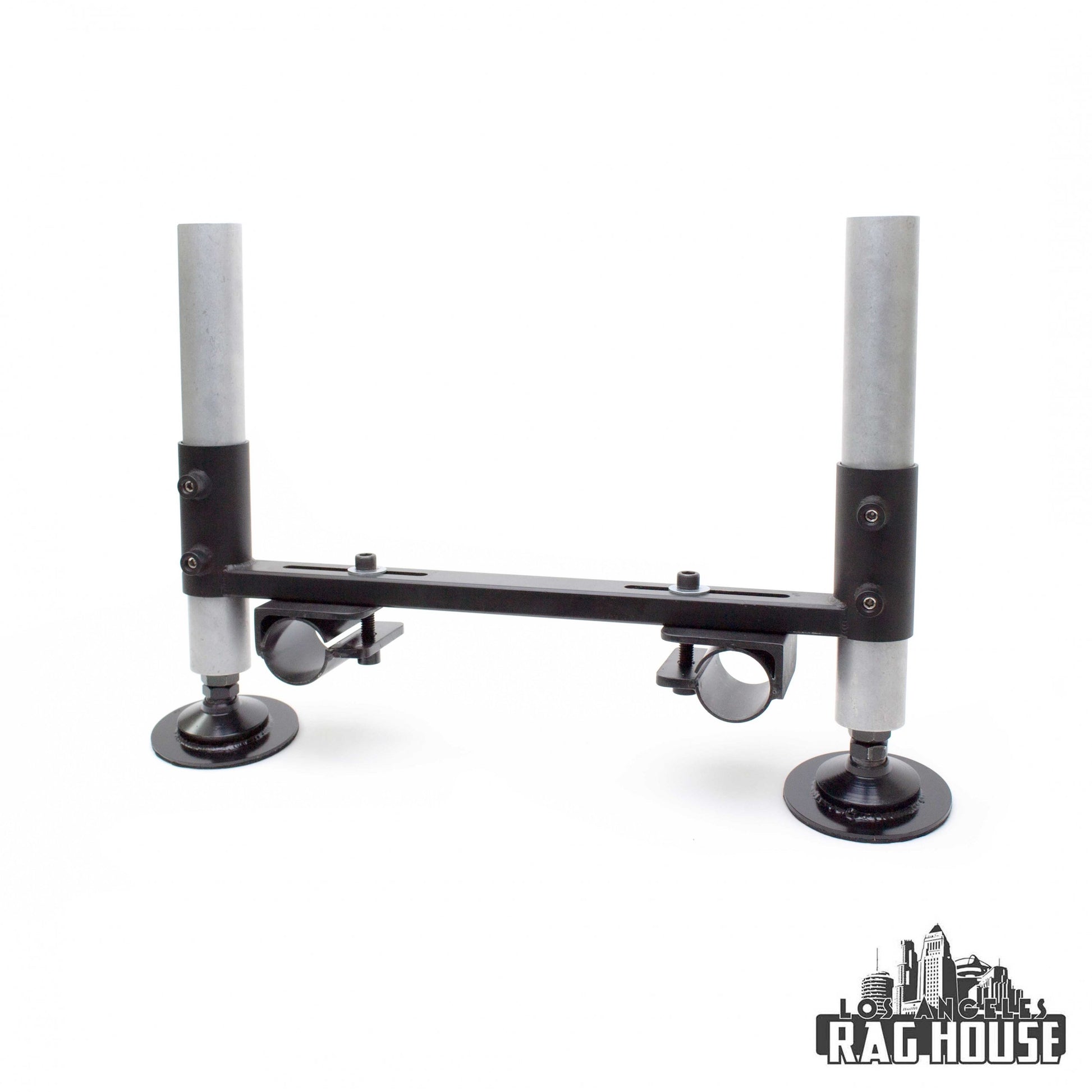

Fully adjustable and configurable hood mount system starting with 1-1/4" brackets that accept modified pipe legs drilled and tapped with 3/8" and 1/2" female threads. Slider brackets with set screws allow quick positioning and mounting of 2020 cheese plates, the Quatturo 4-Way Leveler, or a Brevis Ball Level.

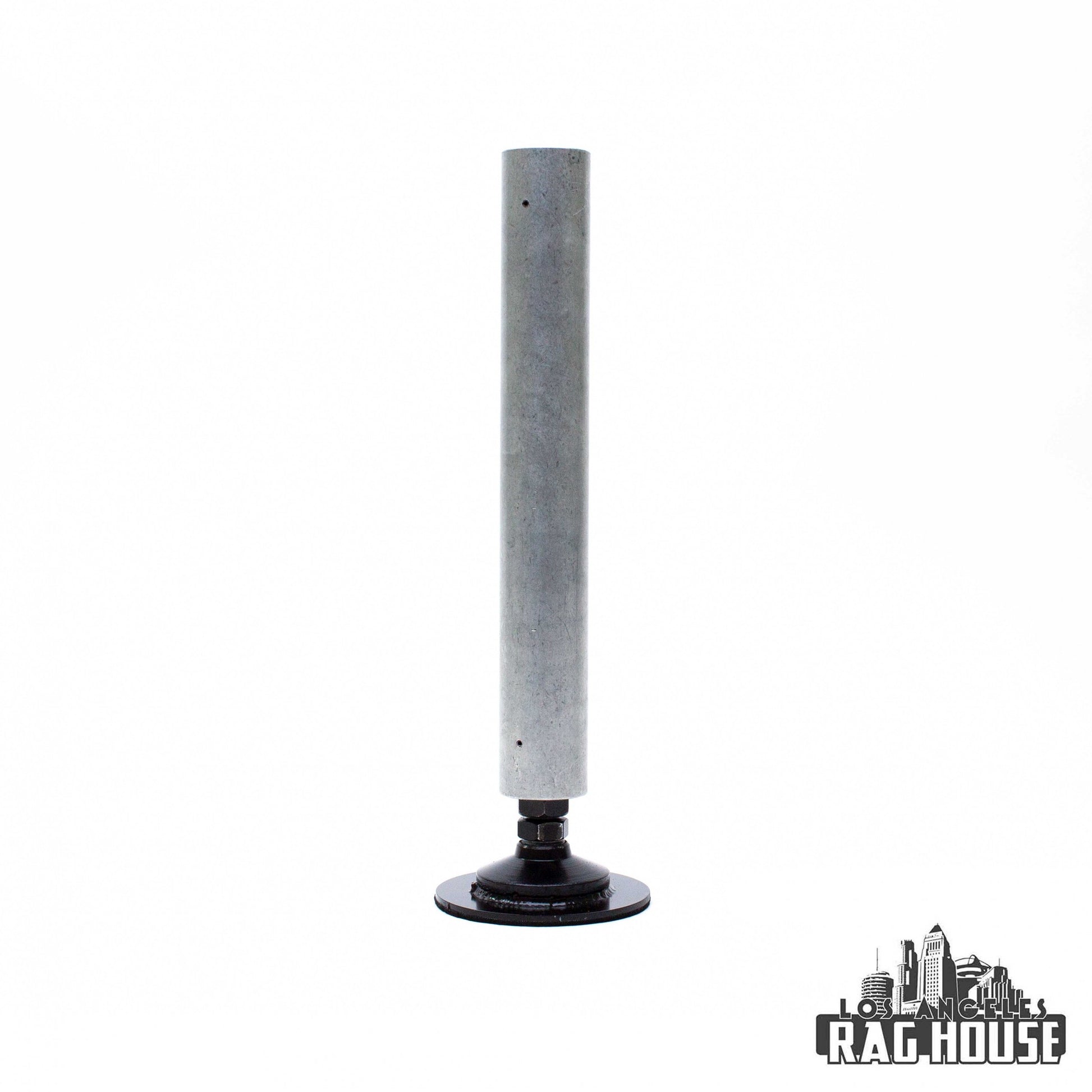

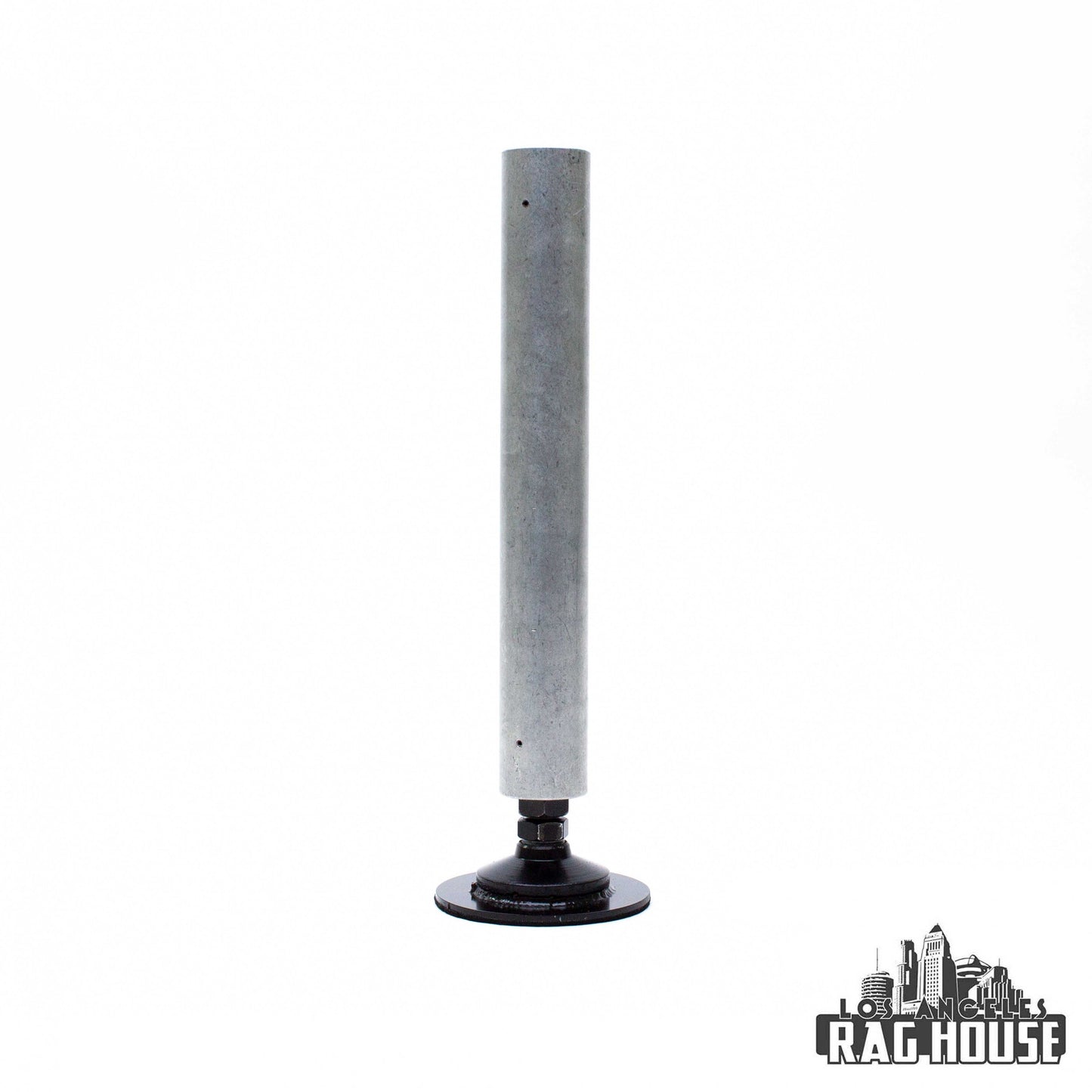

• 1-1/4" modified pipe legs with 3/8" and 1/2" female thread

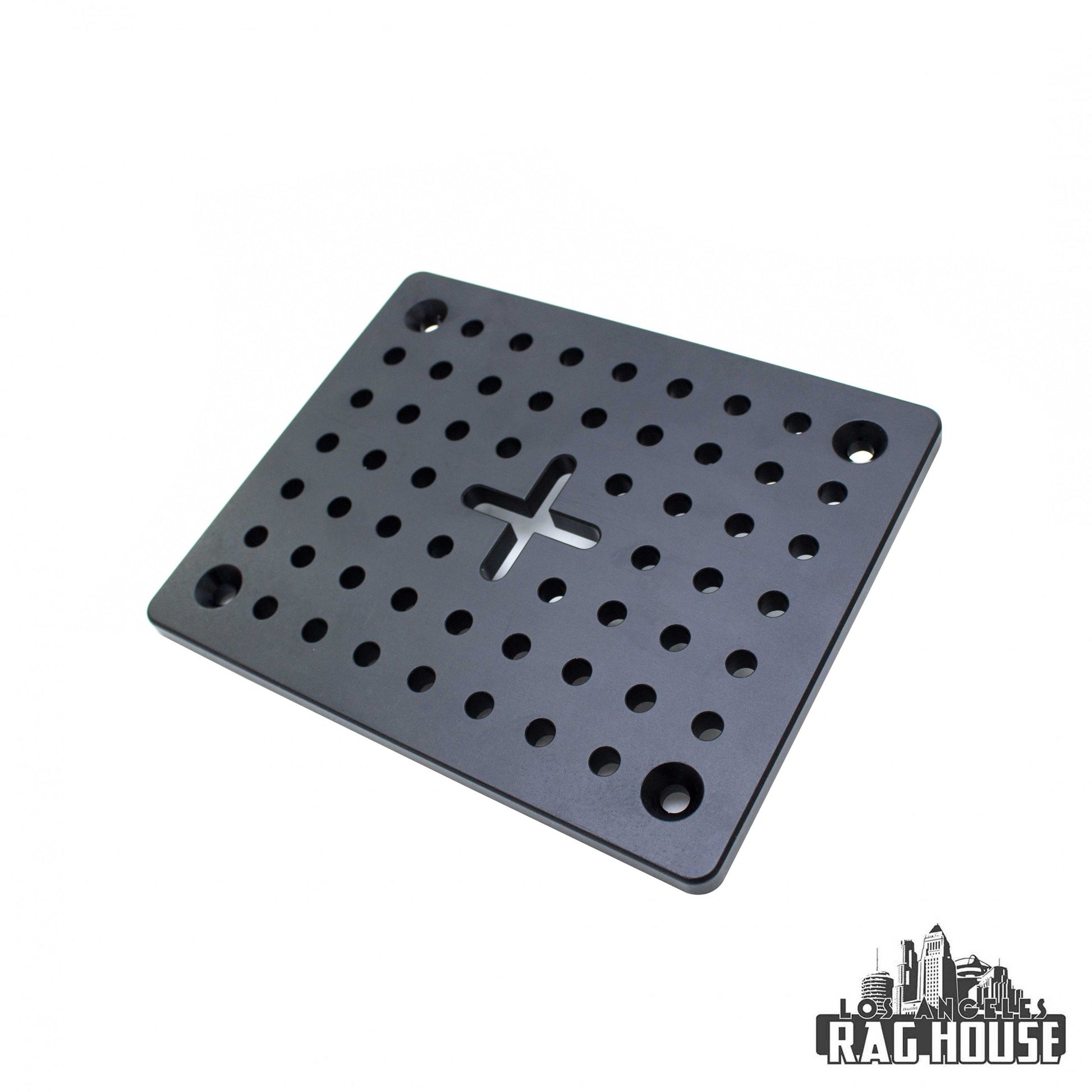

• Compatible with 2020 Cheese Plates (8"x10") or 1995 Cheese Plates (10"x14")

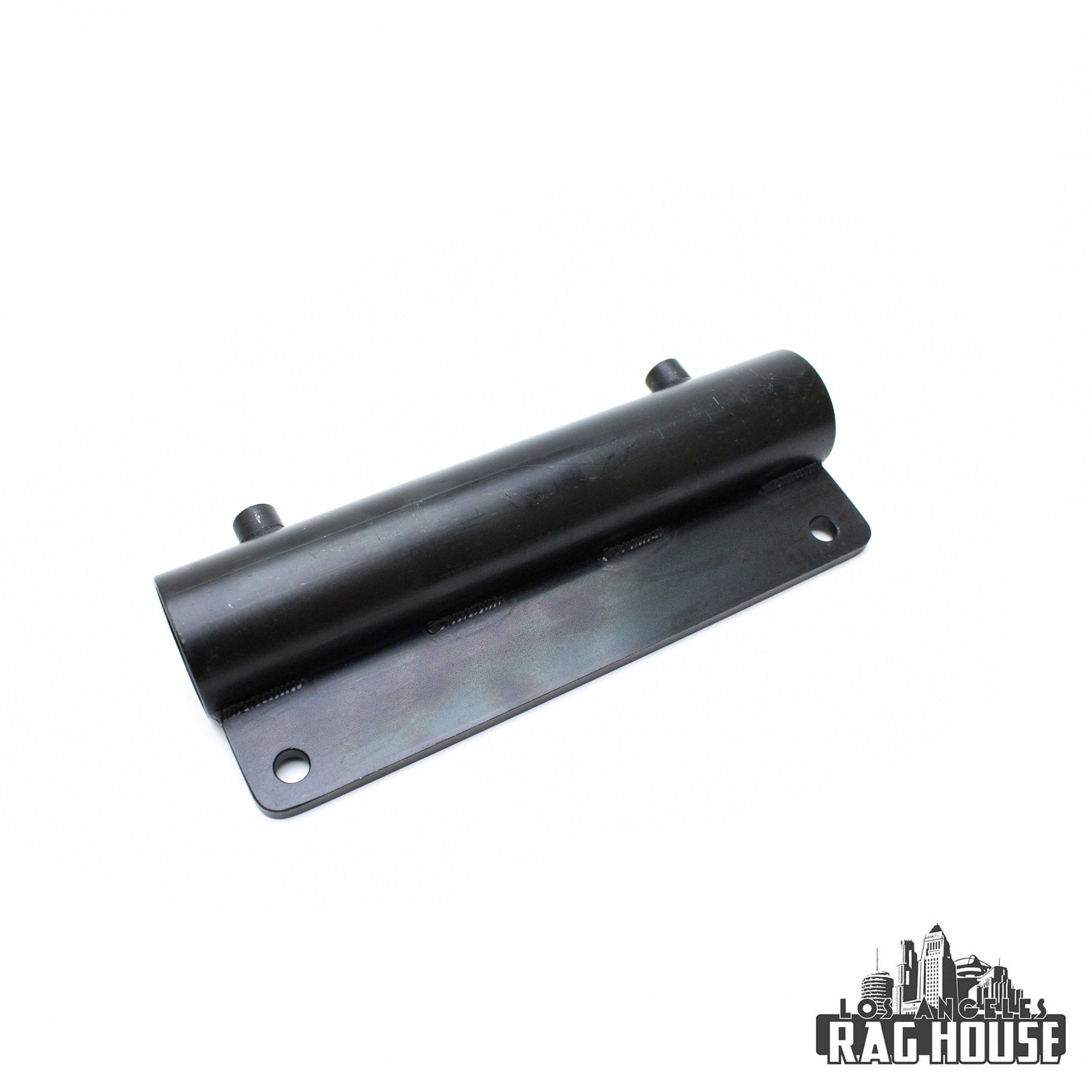

• Hood Mount Bracket accepts 1-1/4" pipe horizontally and vertically
• Fully configurable in height and length
• Black finish

Kit includes: 2 Cucullo Hood Mount Brackets, 4 × 1-1/4" Legs with Adjustable Swivel Foot, 3 × 2020 Cheese Plates with X Slot, 6 × 7" Slider Brackets. No pipe included.
