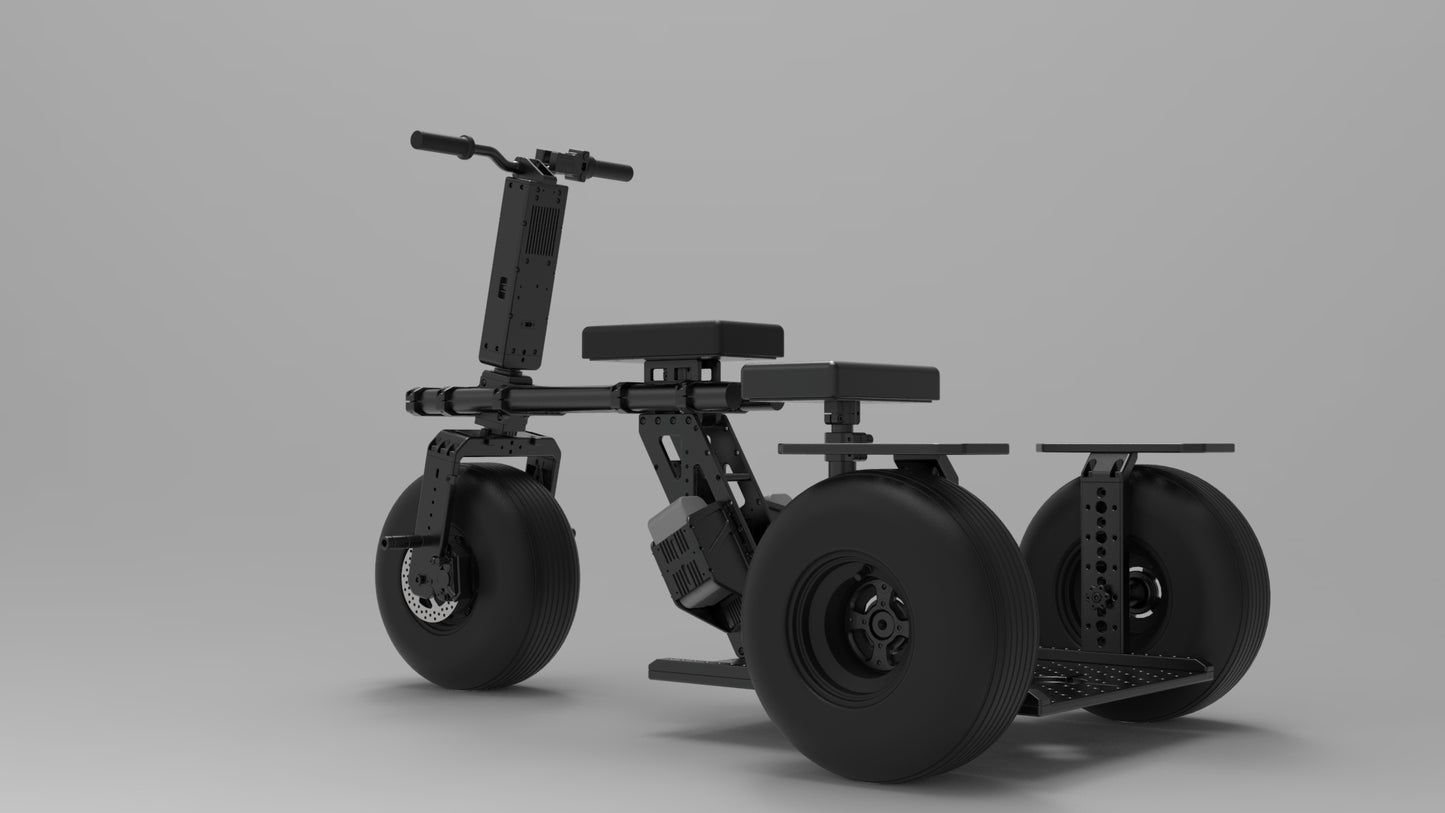

Raptor Trike Electric Attachment Kit
Raptor Trike Electric Attachment Kit
Couldn't load pickup availability
Raptor Trike Electrical Kit, with the mission to make your own classic Raptor Rickshaw into an electric vehicle, is ready to release!
Important Note: Dewalt batteries are not included in the package.
WHAT’S IN THE BOX
The Raptor Trike Electrical Kit is optimized for the user to operate flexibly, comfortably, and efficiently. Check this pic:
HIGHLIGHT FEATURES:
Like its name, this added set upgrades your Raptor Rickshaw from a classical operator to an electrical vehicle. And more advanced features, which you can find below:
- An installation like Lego: Raptor Trike Electrical Kit is assembled in front of the Rickshaw Cheese Plate. It provides enough traction and thrust for your vehicle without changing the rest of the components.
- Sit Comfortably with 3 points: flat chair, wheel adjustment, and footrest
- Energy from Dual Dewalt Flexvolt Batteries: With devices built-in batteries, it is becoming increasingly difficult to transport and travel with them. Raptor Trike Electrical Kit is not designed like that and is powered by dual Dewalt Flexvolt batteries, which you can reach easily locally.
TECHNICAL DATA
- Length: 1600 – 1800mm (Adjustable)
- Width: 1000mm with Fat Wheels
- Weight of Raptor Trike Electrical Kit: 45kgs
- Weight of Raptor Trike (electrical vehicle only): 80kgs
- Maximum payload: 220kgs
- Maximum Speed: 30 km/h (Drive Mode), 8 km/h (Reverse Mode)
- Maximum Range: 20 – 30mins
BATTERY
- Battery: Dual Dewalt Flexvolt 60V 15aH
- Max Range: 20 – 30mins
- Batteries and Charger are not included in the package
- Energy from Dual Dewalt Flexvolt Batteries: With devices built-in batteries, it is becoming increasingly difficult to transport and travel with them. Raptor Trike Electrical Kit is not designed like that and is powered by dual Dewalt Flexvolt batteries, which you can reach easily locally.
If you are located in the USA, Canada, DEWALT DCB615 FLEXVOLT® 20V/60V Max* 15.0Ah Battery is a good choice for you. And you can purchase via Amazon easily:
-
- Battery: DEWALT-DCB615-FLEXVOLT-15-0Ah-Battery. (Amazon Link)
- Battery Charger: DEWALT-DCB118-FLEXVOLT-Fast-Charger. (Amazon link)
Outside of the USA, DeWalt 18V/54V XR FLEXVOLT 15.0Ah Battery DCB549-XJ can work with the Raptor Trike.
“The Dewalt 54v is the same 60v, and you can buy it without any problem. Different countries sometimes force marketing to label things differently; the only difference is the sticker. When fully charged, the 54v battery can read up to 60v (max) on a voltmeter.”
This model is more popular and you can find more than in the UK, Eurozone, Australia and more.
ASIA market:
- Dewalt DCB612-KR (Available in: Korea, Thailand and Vietnam): https://asia.dewalt.global/product/dcb612-kr/60v-4ah-flexvolt-battery?tid=579171
- DCB612-B1 Model (Available in: India, Thailand and Vietnam): https://asia.dewalt.global/product/dcb612-b1/18v54v-120ah-battery-pack-flexvolt?tid=579171
- DCB612 (Available in Taiwan) https://asia.dewalt.global/product/dcb612/flexvolt-20v60v-max-120-ah-battery?tid=579171
You have not found the suitable Dewalt battery, here is another choice for your reference.
Escooter or Ebike Battery option
Besides, the vehicle also accepts a 60V Lithium battery 12 – 15aH (battery tray is 400x100x70mm) with an XT60 connector for power cable. Please find the e-bike or e-scooter batteries whose dimensions are less than or equal.
Operating Instructions:
- Sit Comfortably with 3 points: flat chair, wheel adjustment, and footrest
-
Simple Operation: Here is the control area, and you can find.
- 1 – Power ON/OFF
- 2 – R means Reverse Mode. Please press this button to change the direction.
- 3 – Throttle. To accelerate the Raptor Rickshaw, turn the throttle grip towards you. Similarly, to slow down, roll the throttle away from you.
- 4 – Brake. In order to STOP, please actuate the brake.
- 5 – Packing Brake
- 6 – Battery Percentage
- Maximum payload: 200kgs, various camera setup you can nail it!
- Speed Limit: Maximum 30 km/h (drive mode), 8 km/h (reverse mode
RAPTOR TRIKE WITH MULTI PURPOSE:
