Savior Clamp with 5/8in pin

Regular price $42.99

Back

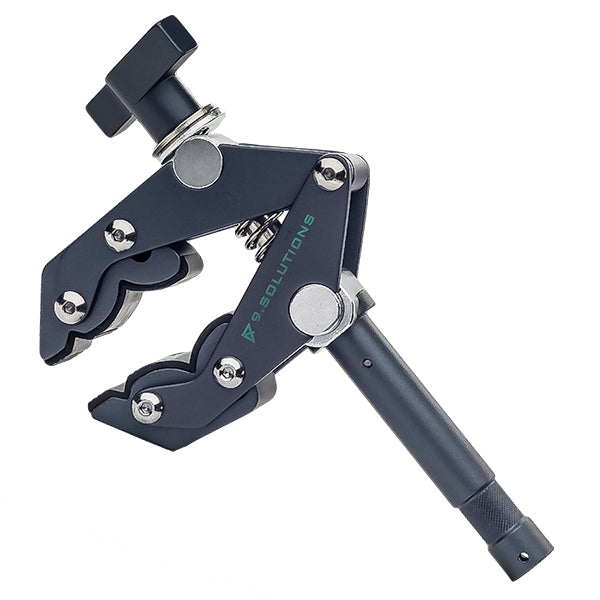

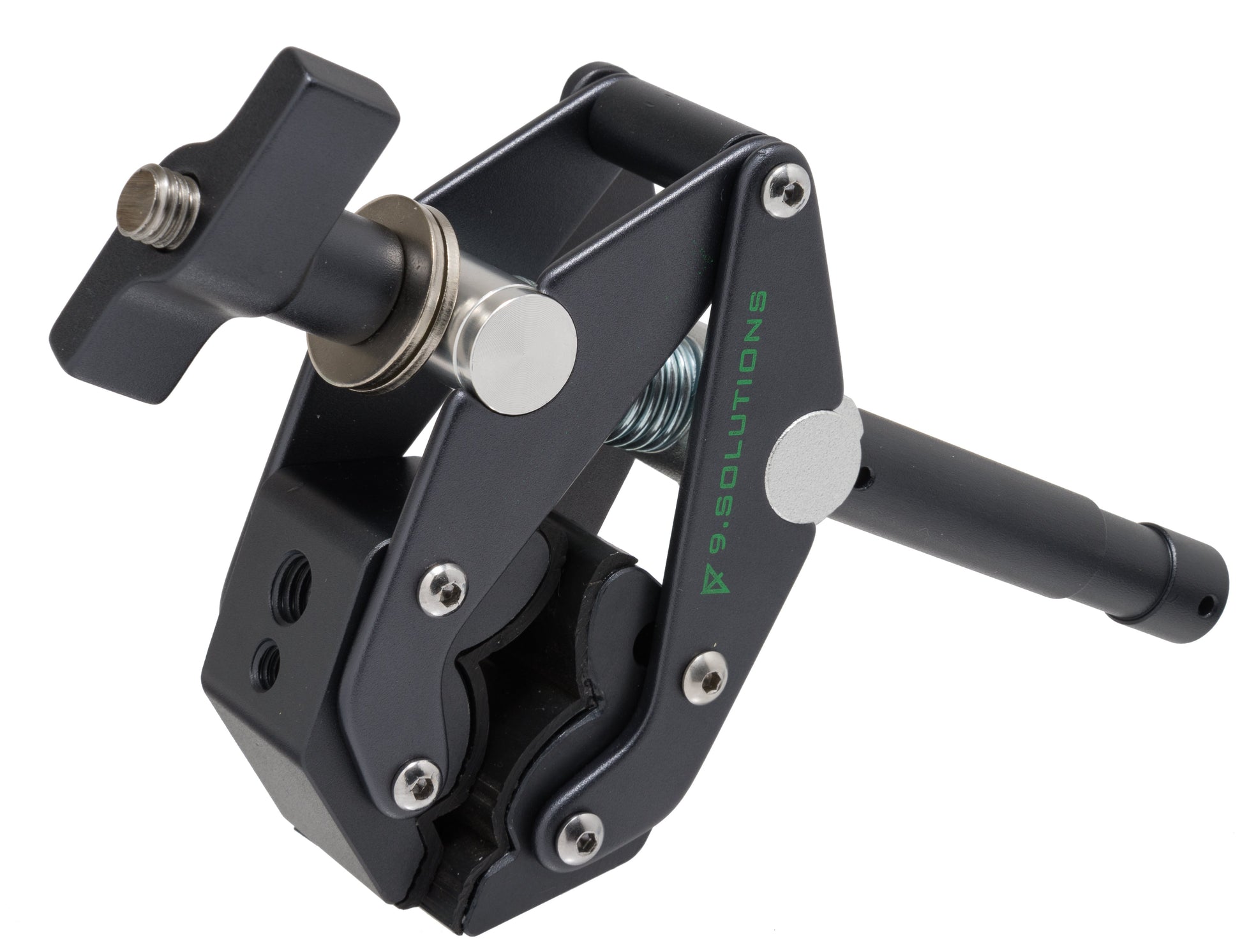

Savior Clamp with 5/8 Pin

The Savior Clamp with 5/8 Baby Pin has unique, articulating jaws that fit firmly onto any oddly shaped object.

When mounting on round, square, or flat objects, the peak-and-valley design of the jaw allows for multiple points of contact, ensuring a strong grip every time.

The Savior Clamp with 5/8 Baby Pin is fitted with a 3.5In long, 5/8 baby pin (3/8 end tapped) and it is tapped with one 1/4-20 and one 3/8-16 threaded hole on each jaw.

This makes it possible to mount multiple pieces of equipment on one clamp.

All Savior clamps feature an anodized aluminum surface for added durability and longevity.

The handle utilizes a special Igus Polysorb thrust washer sandwiched between (2) Stainless Steel Washers for maximum torque.

Clamping Size: 0-2.37in.
Max Load: 40lb.

Connections:
  • (2x) 1/4-20 Tapped Holes
  • (2x) 3/8-16 Tapped Holes
  • (1x) 5/8 stud with threaded 3/8 end
This Savior Clamp with Pin is Patent Protected
