SUCTION CUP SET

SUCTION CUP SET

FEATURES:
☑ 85mm ( 3,34" ) O.D Outside diameter
☑ 90mm ( 3" 1/2 ) O.D Outside diameter
☑ 120mm ( 4" 3/4 ) O.D Outside diameter
☑ 150mm ( 6" ) O.D Outside diameter
☑ Stainless steel
☑ Black anodized
☑ High strength aluminium alloy

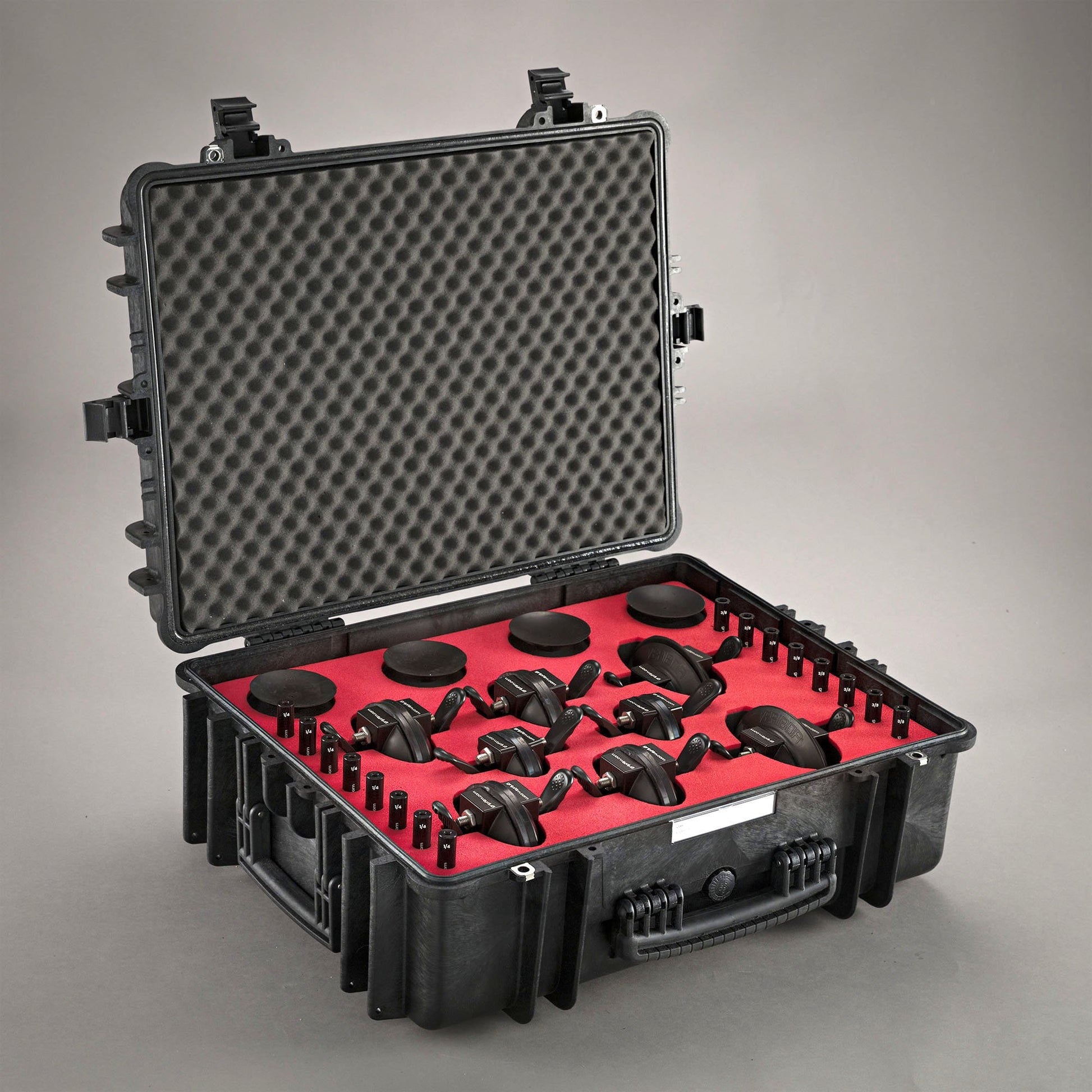

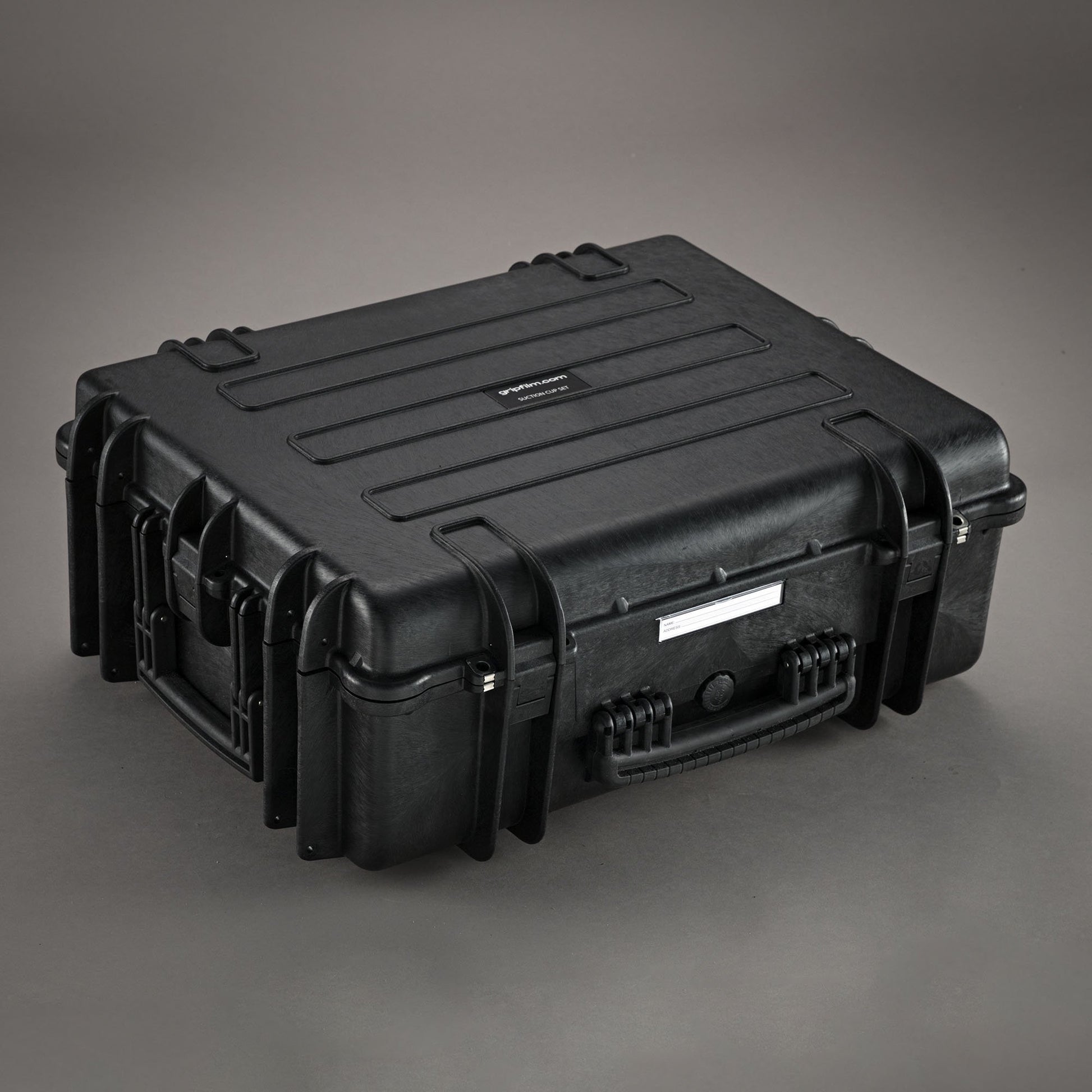

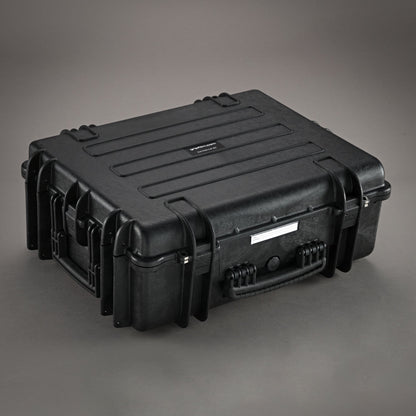

☑ Black Explorer case 5822
☑ Custom laset cut foam
☑ Copolymer polipropylene case
☑ Waterproof case

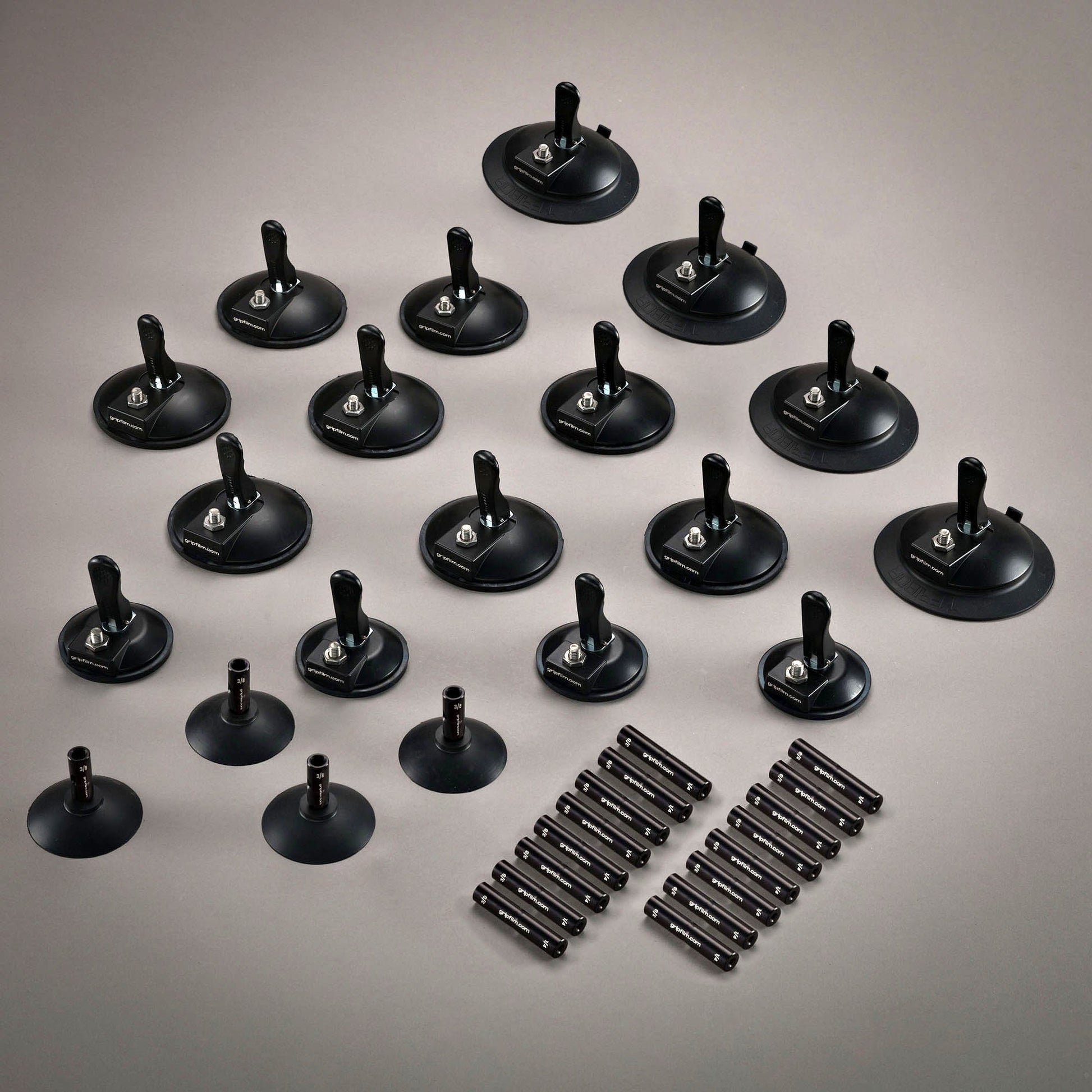

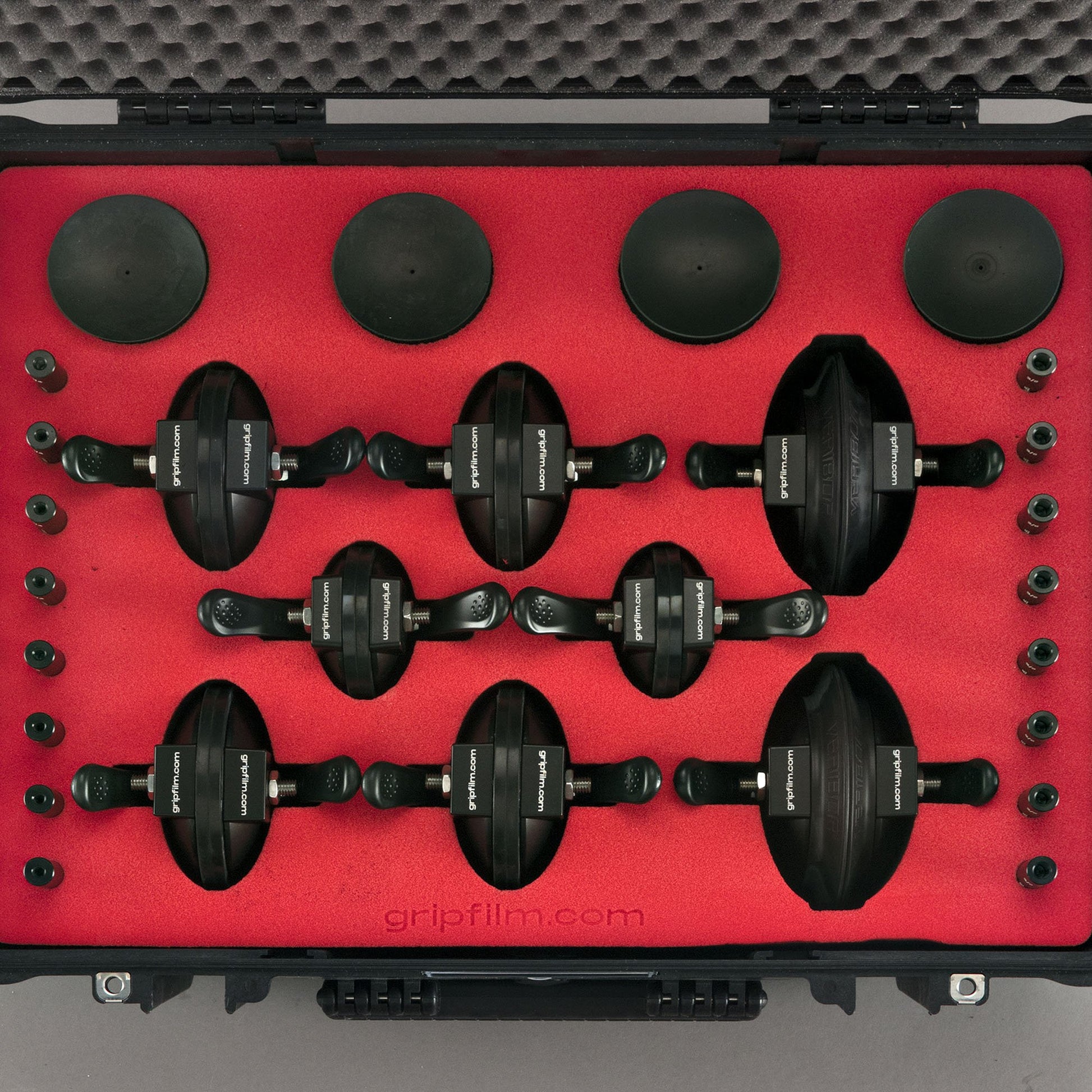

SET INCLUDES:
☑ 4 Pieces 85mm ( 3" 1/4 ) Rubber suction pad with 40mm (1" 57 ) Starter Pin 16mm (5/8" )
☑ 4 Pieces 90mm ( 3" 1/2 ) Suction cup
☑ 8 Pieces 120mm ( 4" 3/4 ) Suction cup
☑ 4 Pieces 150mm ( 6" ) Suction cup

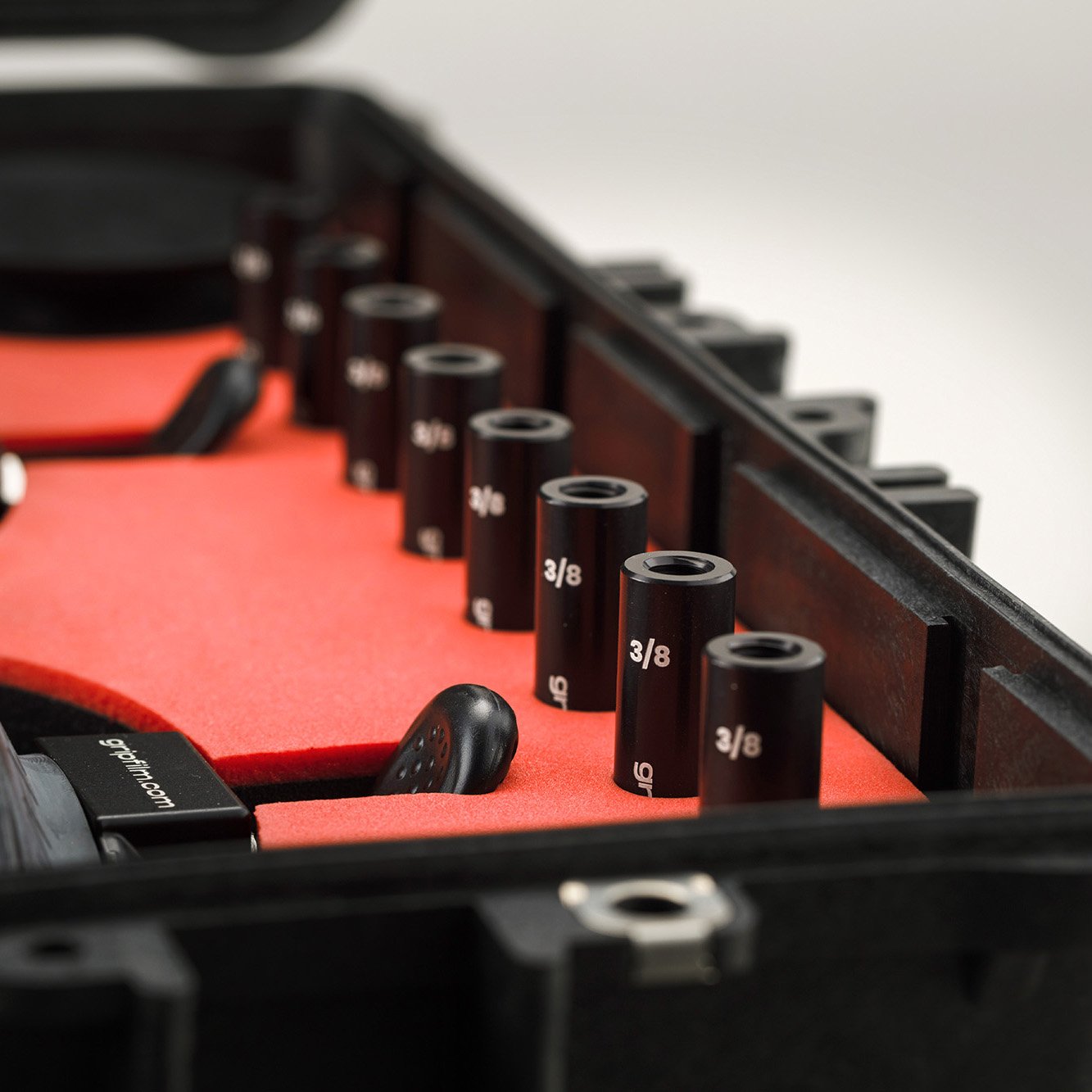

☑ 16 Pieces 80mm ( 3" 3/4 ) Length - Starter pin 1/4 - 3/8 Female Threads
☑ Black Explorer case 5822

Note : The suction cups should never be stored activated; they should always be stored in their resting position.

Maximum Load Capacity :

GFSC-150 - 16,6 Kg (36,6 Lbs)
GFSC-120 - 13,3 Kg (30 Lbs)
GFSC-90 - 7,3 Kg (16,1 Lbs)
Includes a 3:1 safety factor and requires the following: attachment on clean, smooth, nonporous flat surfaces; a minimum vacuum level of 17½" Hg [-59 kPa]; and a friction coefficient of 1. This rating is based on tests of new hand cups attached to the upper, horizontal surface of static objects in ideal conditions. Many factors can reduce the capacity, including: lifting a load when the cup is attached to a vertical or inclined surface; or lifting a load that applies leverage to the Cup.

For further information about what it includes, click on the PDF
