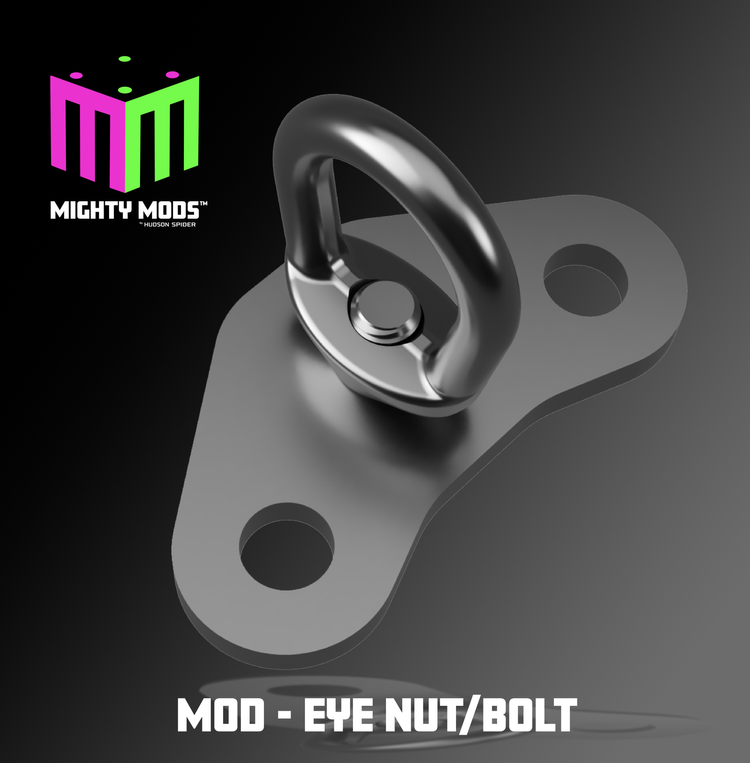

This MightyMODS™ accessory is designed for vertical lifting.
Eye Nut
-
316 Stainless Steel for corrosion resistance
-
Thread Size - M12 × 1.75 mm
-
Overall Length - 64 mm
-
Eye Diameter - 32 mm
-
Vertical Capacity - 2,150 lb.
-
Eye Shape - Oval
-
Movement - Rigid
-
REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
-
RoHS 3 (2015/863/EU) Compliant
-
Schedule B Number - 731816.0000
Note: This capacity applies to the eye nut only. Eye nuts are for vertical lifting only.
Warning: Never use to lift people or items over people.
Bolt
-
Thread Size - M12
-
Thread Pitch - 1.75 mm
-
Length - 25 mm
-
Drive Style - Hex 8 mm
-
Material - Zinc-Plated Alloy Steel resists corrosion in wet environments
-
Fastener Strength Grade/Class - Class 12.9
-
Hardness - Rockwell C39
-
Tensile Strength - 170,000 psi
-
Class 5g6g
-
DIN 7991
-
RoHS 3 (2015/863/EU) Compliant
-
REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant
-
Made from alloy steel, this screws are nearly twice as strong as stainless steel flat head screws. They're angled under the head to sit flush within countersunk holes. Length is measured from the top of the head.
“Boomerang” Utility Plate 1/2” offset.
-
Black Zinc coated 1/4” Steel
-

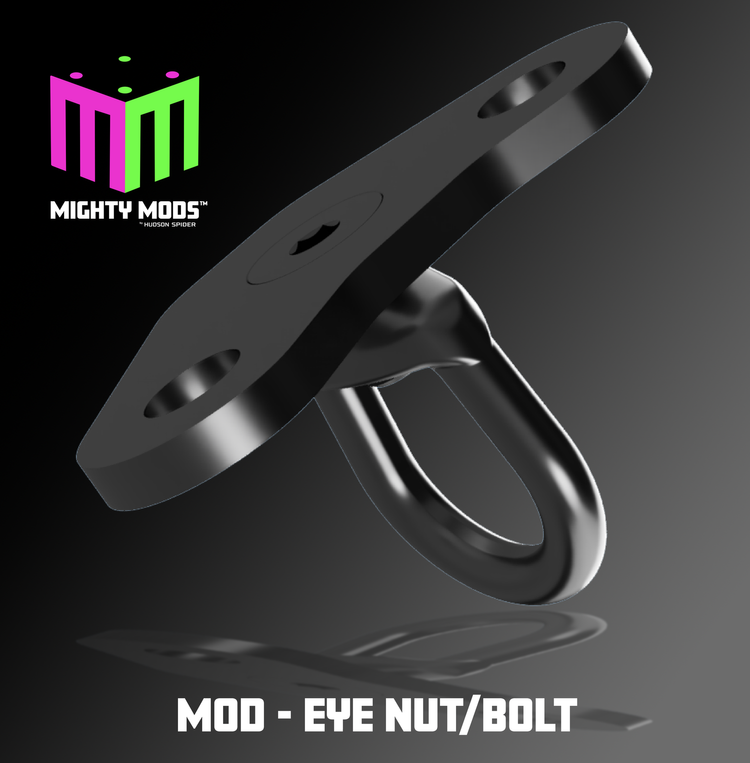

Countersunk on the truss side to allow flush mounting of bolt, either M12 or 3/8”16
-
2 × 11/16” holes, 3” on centre - Modtruss standard pattern
-
1/2" OFFSET - Designed to align pipe or other accessories with the edge of the truss
Includes
-
Eye nut
-
M12 bolt
-
Boomerang
