MIGHTYMODS CAMERA KIT

Here’s the go to kit for building effective rigs when camera dollies and camera equipment that utilize Mitchell mounts are required.

Included:

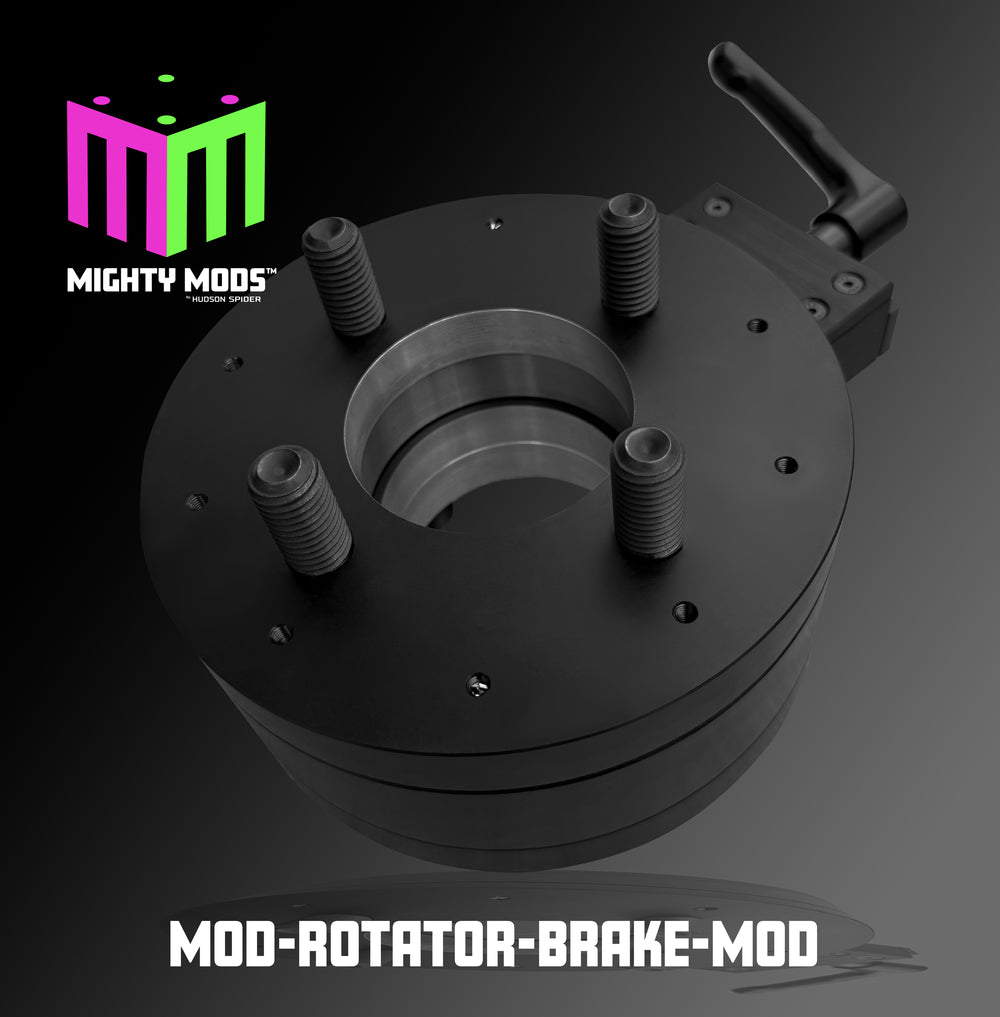

ROTATOR-BRAKE

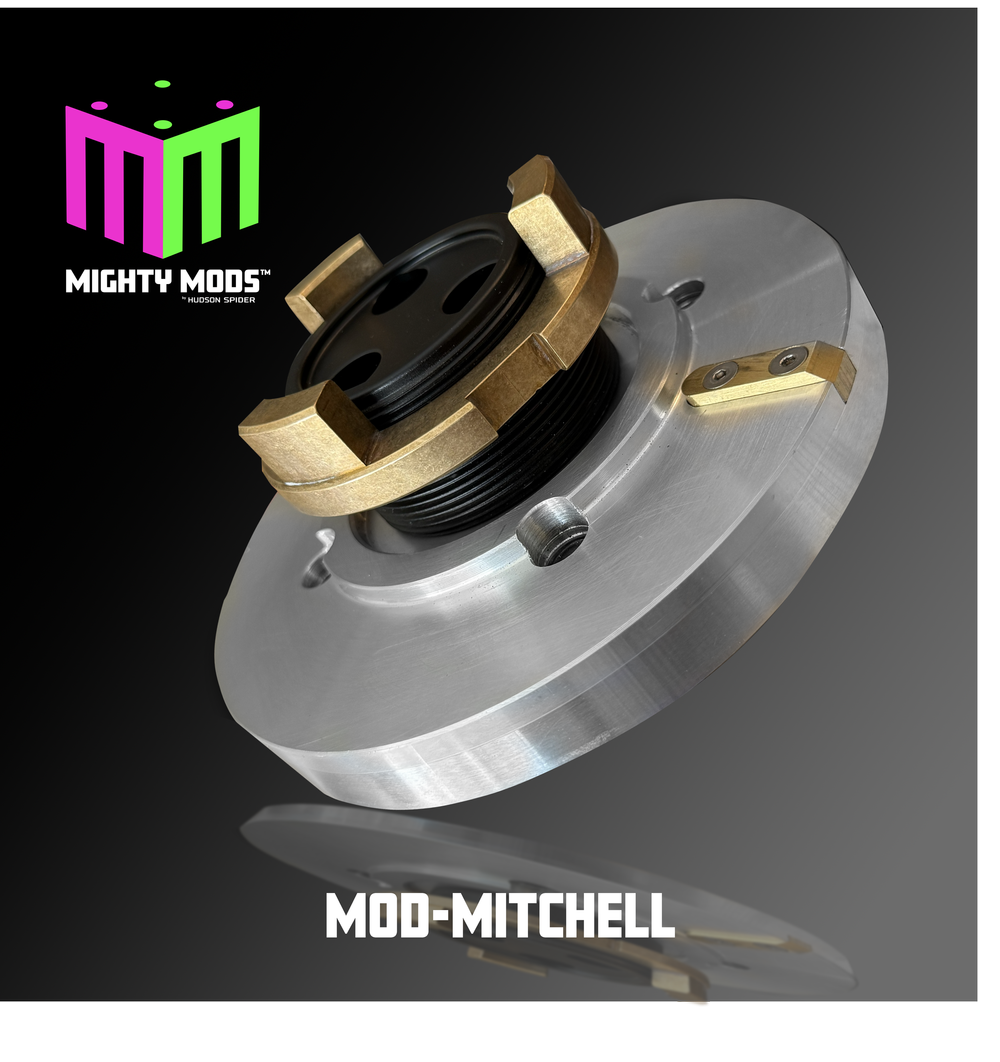

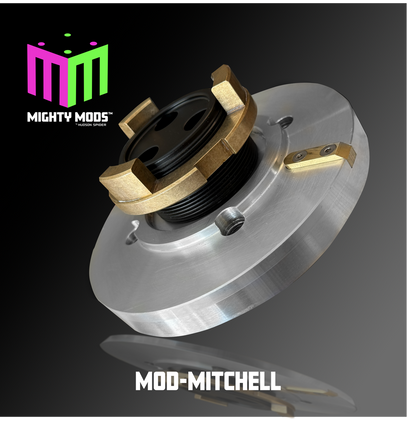

MALE MITCHELL

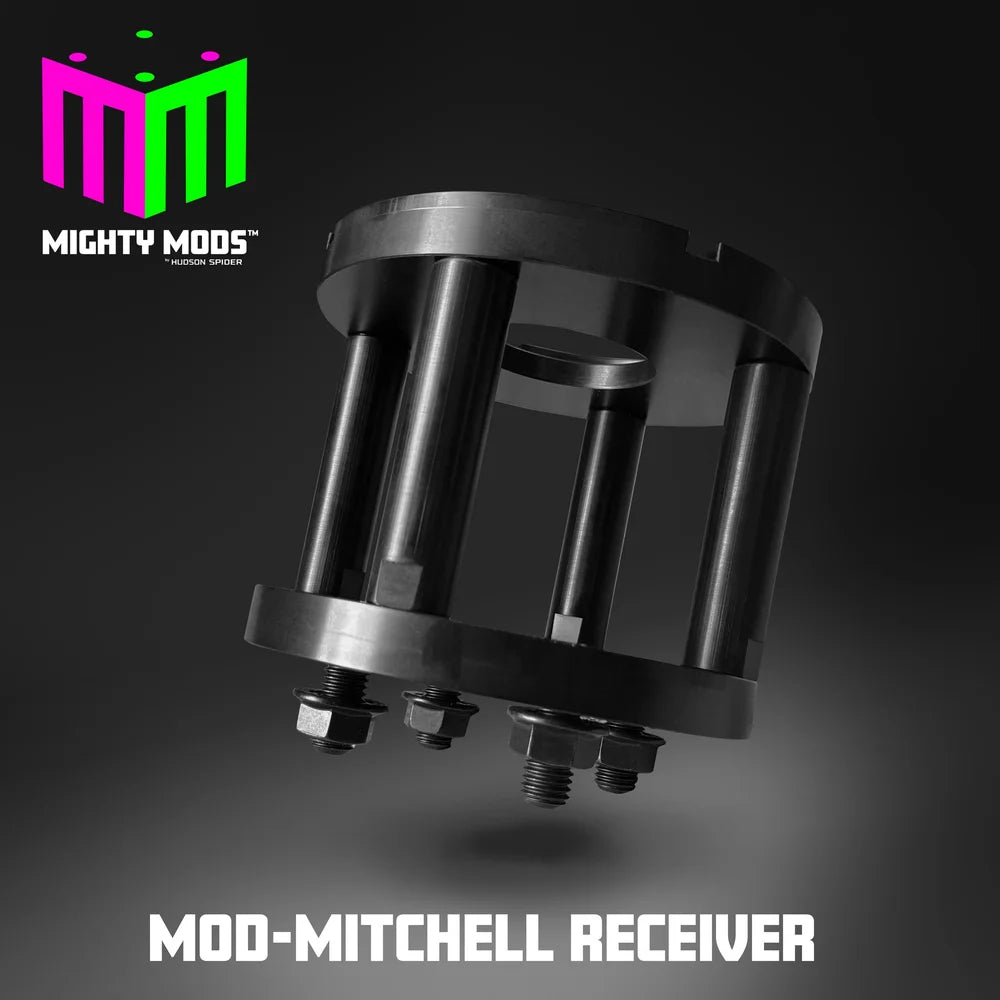

MITCHELL RECEIVER

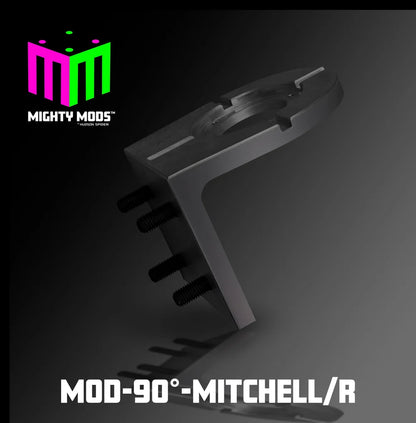

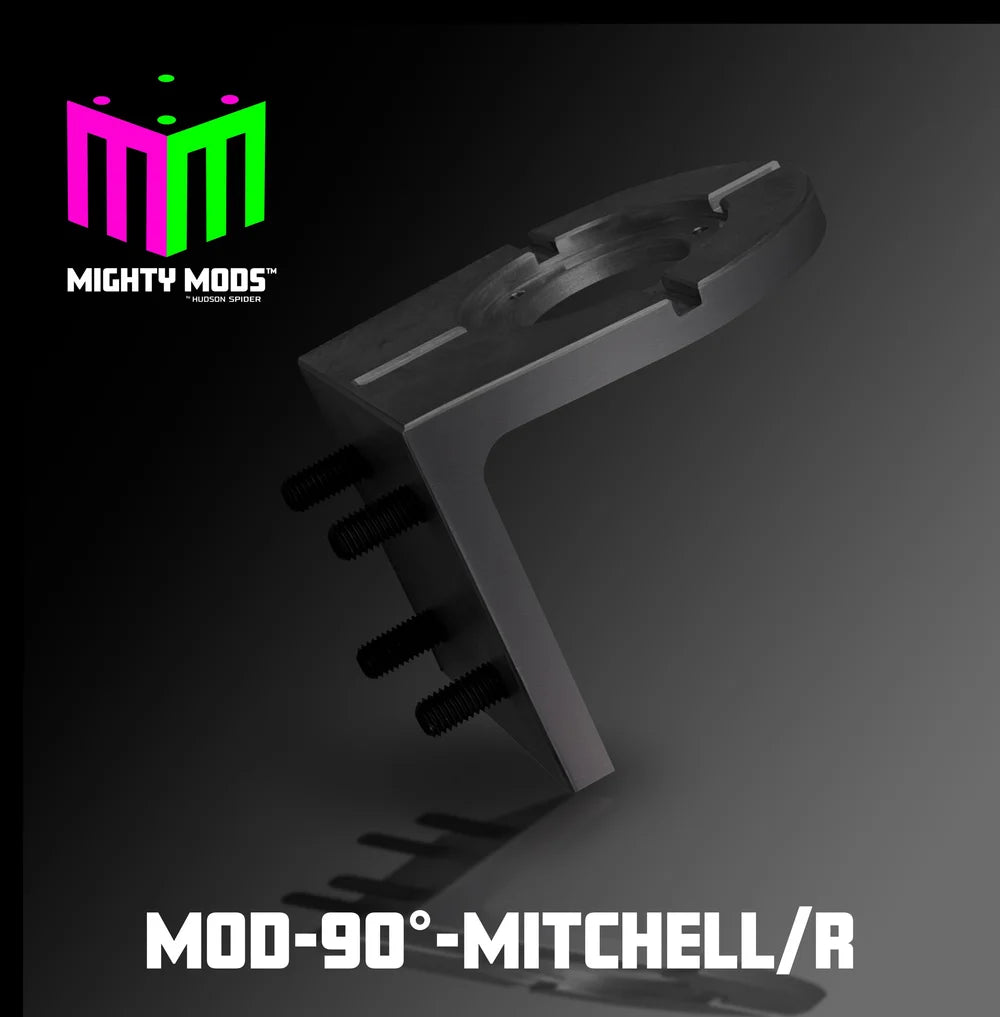

90º MITCHELL RECEIVER

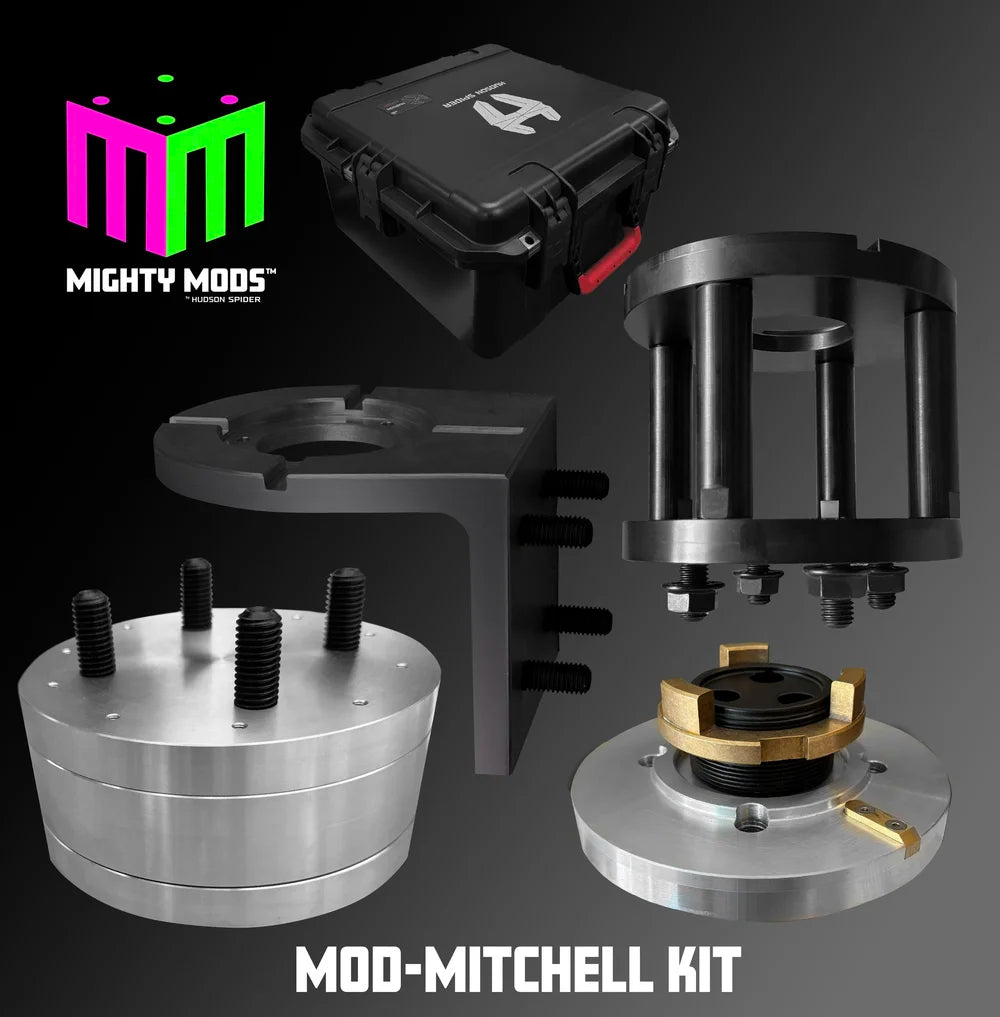

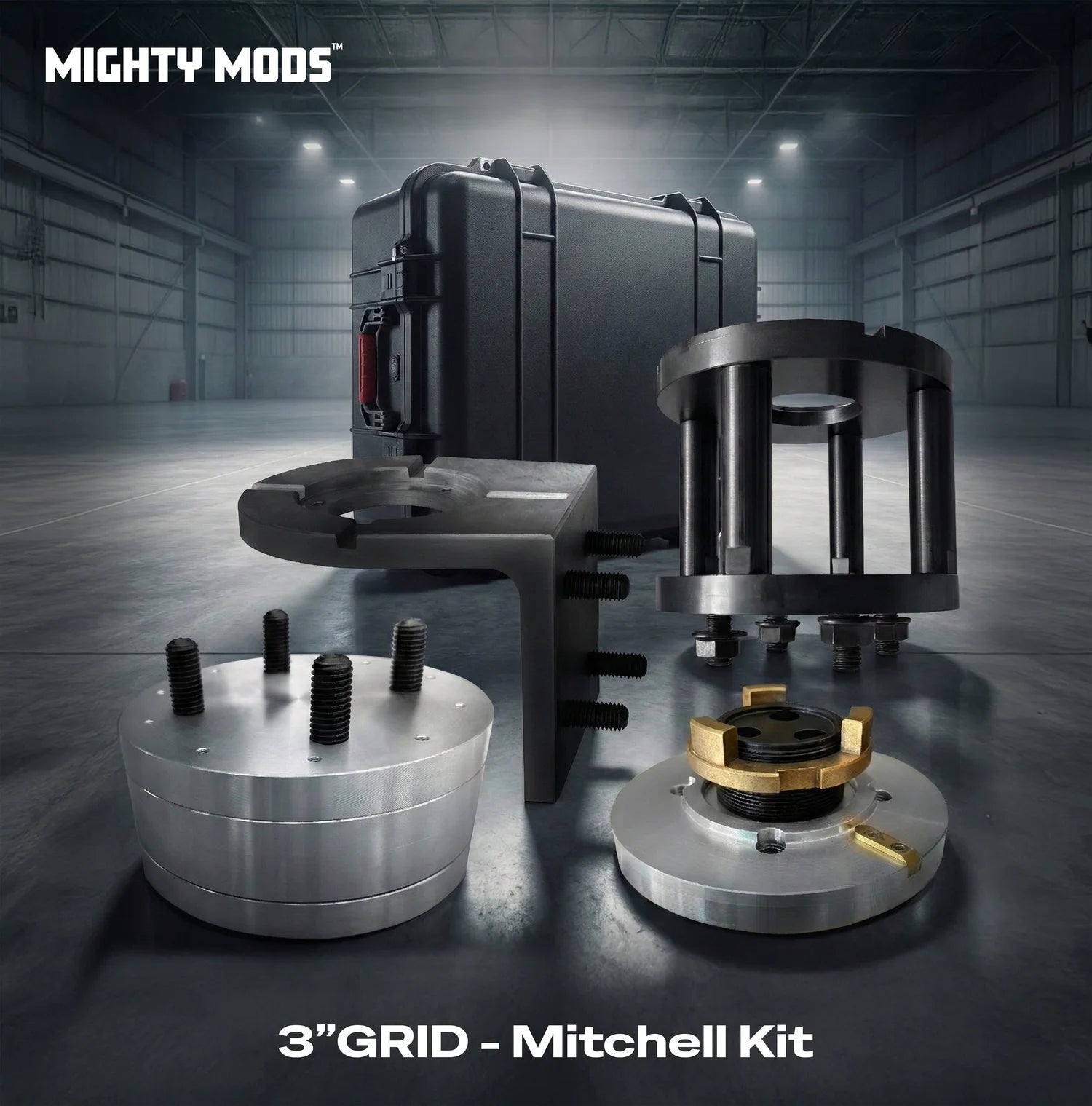

A comprehensive Mitchell mounting system including our extremely high performance Crossed Roller rotator bearing with braking system, all together in one sturdy waterproof SKB road case with custom insert.

MightyMODS™ accessories attach using the universal utility 3”x3” 11/16” hole pattern.

The working load limits (WLL) for our Rotator assembly are as follows:

• Axial Load (Tension/Compression):

  • Static: 30 kN (~6,700 lbf)

  • Dynamic: 20 kN (~4,500 lbf)

  • Shock: 15 kN (~3,400 lbf)

• Radial Load (Shear):

  • Static: 15 kN (~3,400 lbf)

  • Dynamic: 10 kN (~2,250 lbf)

  • Shock: 5 kN (~1,100 lbf)

• Moment Load (Overturning):

  • Static: 1,000 N·m (~740 ft·lb)

  • Dynamic: 650 N·m (~480 ft·lb)

  • Shock: 330 N·m (~240 ft·lb)
