Raptor Magnet Mount

Raptor Magnet ... is the first-world safety electromagnet, connect cinema rigs together in second! Unleash your Creativity!

PULL TO RELEASE – TOUCH TO LOCK

Powerful electromagnet supports up to 50kgs payload. Instead of pushing to release looks like a tailor-made magnet, this new product is built-in pull action.

OUTSTANDING SAFETY SOLUTION

• Mechanical Key

A simple structure, but nobody can touch button release when your rigs are beneath the magnet.

HOW TO INSTALL

• Top-mount: Male Mitchell

• Bottom-mount: Custom Universal Plate (updated from January 01st, 2022)

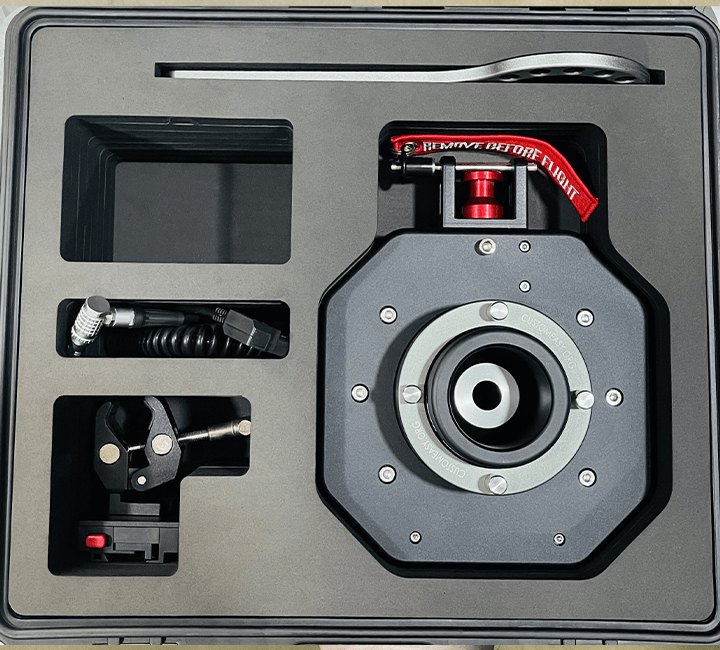

EASY TO TRAVEL (with travel case – optional accessories)

Specification

• Dimensions (LxWxH): 182 x 230 x 90 (mm)
• Weight: 3.8kgs (with Magnet – 2.8kgs, Steel Plate Universal Mount – 1.0 kg)
• Operating Temperature: -5°C to +45°C
• DC IN: 14V-26V
• Max current: 3A (16V)
• Max payload : 50kg
• Battery mount: V-mount option
